[全新品][貿易商品][新款]McIntosh MAC 7200(參考照片)

新款商品 需預定 兩個禮拜工作天到貨 [全新品][貿易商品][新款]McIntosh MAC 7200(參考照片)

[全新品][貿易商品][新款]

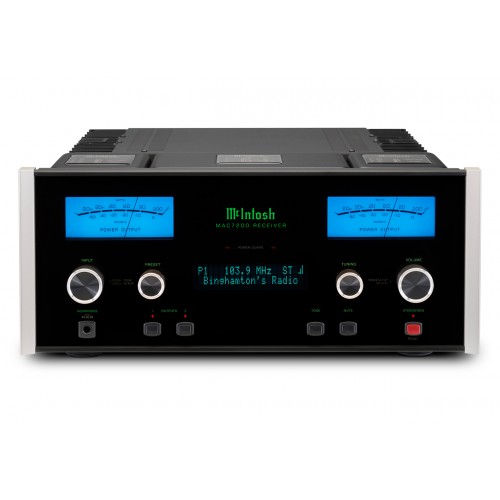

#McIntosh MAC 7200(參考照片)

#NT200000

#空運兩週工作天到貨

ELECTRONIC SPECIFICATIONS

POWER OUTPUT PER CHANNEL

200 Watts

NUMBER OF CHANNELS

2

SPEAKER IMPEDANCE

2, 4, or 8 Ohms

RATED POWER BAND

20Hz to 20kHz

TOTAL HARMONIC DISTORTION

0.005%

DYNAMIC HEADROOM

2dB

FREQUENCY RESPONSE +0,-0.5DB

20Hz to 20kHz

FREQUENCY RESPONSE, +0, -3DB

10Hz to 100kHz

SENSITIVITY PHONO (MOVING COIL)

0.25mV

SENSITIVITY PHONO (MOVING MAGNET)

2.5mV

SENSITIVITY HIGH LEVEL (BALANCED / UNBALANCED)

0.5V/0.25V

SENSITIVITY (POWER AMP INPUT)

1.4V

SIGNAL TO NOISE RATIO (MOVING COIL)

80dB

SIGNAL TO NOISE RATIO (MOVING MAGNET)

82dB

SIGNAL TO NOISE RATIO (HIGH LEVEL)

95dB

SIGNAL TO NOISE RATIO (POWER AMP INPUT)

113dB

INPUT IMPEDANCE (BALANCED / UNBALANCED)

20K/20K

DAMPING FACTOR

>40

MAXIMUM OUTPUT (BALANCED / UNBALANCED)

8V Unbalanced

CONNECTIVITY

BALANCED INPUT

1

UNBALANCED INPUT

5

PHONO INPUT MOVING COIL

1 (adjustable loading)

PHONO INPUT MOVING MAGNET

1 (fixed loading)

UPGRADEABLE DIGITAL AUDIO MODULE

Yes

DIGITAL COAXIAL INPUT

2

DIGITAL OPTICAL INPUT

2

DIGITAL MCT (DIN) INPUT

1

DIGITAL USB INPUT

1

BALANCED VARIABLE OUTPUT

0

UNBALANCED FIXED OUTPUT

0

UNBALANCED VARIABLE OUTPUT

2

HEADPHONE OUTPUT

1/4" High Drive with Headphone Crossfeed Director (HXD®)

AM/FM TUNER OPTION

Included

HOME THEATER PASSTHRU

Yes

UNBALANCED ANALOG CONNECTOR TYPE

Standard

SPEAKER BINDING POST TYPE

Standard

SERVICE PORT

1

DIGITAL AUDIO SPECIFICATIONS

DIGITAL-TO-ANALOG CONVERTER (DAC) TYPE

8-channel, 32-bit/192kHz PCM/DSD, Quad Balanced

DIGITAL COAXIAL INPUT SAMPLE RATE

24-bit/44.1kHz to 192kHz

DIGITAL OPTICAL INPUT SAMPLE RATE

24-bit/44.1kHz to 192kHz

DIGITAL MCT (DIN) INPUT SAMPLE RATE

16-bit/44.1kHz (CD)
DSD64 (SACD)

DIGITAL USB INPUT SAMPLE RATE

32-bit/44.1kHz to 384kHz (PCM)
DSD64, DSD128, DSD256, DXD352.8kHz, DXD384kHz

FM GENERAL SPECIFICATIONS

FM TUNING RANGE

87.9MHz - 107.9MHz (USA)
87.5MHz - 108.0MHz (Europe)
76MHz - 90MHz (Japan)

FM CHANNEL SPACING

200kHz (USA)
50kHz (Europe50)
100kHz (Europe100, Japan)

FM ANTENNA INPUT

75 ohms, Type “F” Coax connector

FM ANALOG SPECIFICATIONS

USEABLE SENSITIVITY

2.2uV (18.1dBf)

50DB QUIETING SENSITIVITY

1.5uV (14.8dBf)

SIGNAL TO NOISE RATIO

Mono: 70dB
Stereo: 68dB

FREQUENCY RESPONSE

±1dB 20Hz to 15,000Hz

TOTAL HARMONIC DISTORTION

Mono: 0.4%
Stereo: 0.8%

CHANNEL SELECTIVITY

60dB Adjacent Channel
66dB Alternate Channel

STEREO SEPARATION

38dB

AM GENERAL SPECIFICATIONS

AM TUNING RANGE

530kHz - 1720kHz (USA)
522kHz - 1602kHz (Europe)
522kHz - 1611kHz (Japan)

AM CHANNEL SPACING

10kHz (USA)
9kHz (Europe, Japan)

AM ANTENNA INPUT

Balanced, RJ45 connector (for use only with supplied McIntosh RAA2 Remote AM Antenna)

AM ANALOG SPECIFICATIONS

SELECTIVITY

45dB Adjacent Channel

SIGNAL TO NOISE RATIO

50dB

FREQUENCY RESPONSE

0dB, -6dB 50Hz to 3,000Hz

TOTAL HARMONIC DISTORTION

0.5%

SENSITIVITY

350uV/m

CONTROL

TONE CONTROLS

Bass and Treble

TONE BYPASS AND INPUT ASSIGN

Yes

RS232 CONTROL INPUT

Yes

POWER CONTROL OUTPUT

1 Main, 2 Trigger

REAR PANEL DATA PORT

4

REAR PANEL IR SENSOR INPUT

Yes

INPUT LEVEL MATCH

Yes

GENERAL SPECIFICATIONS

VACUUM TUBE OR SOLID STATE

Solid State

OUTPUT AUTOFORMER

Yes

OUTPUT METERS

Yes

DUAL LAYER CHASSIS

Yes

CHASSIS FINISH

Black painted steel

MCINTOSH MONOGRAMMED HEATSINKS™

Yes

POWER REQUIREMENT

120V 50/60Hz, 4.4 amps

STANDBY POWER REQUIREMENT

<0.25 Watts

WEIGHTS & DIMENSIONS

DIMENSIONS (W X H X D)

17-1/2" (44.45cm) x 7-5/8" (19.37cm) x 22" (55.88cm)

WEIGHT

75 lbs (34.1 kg)

SHIPPING WEIGHT

93 lbs (42.3 kg)





含 原廠箱、電源線 及 說明書。
